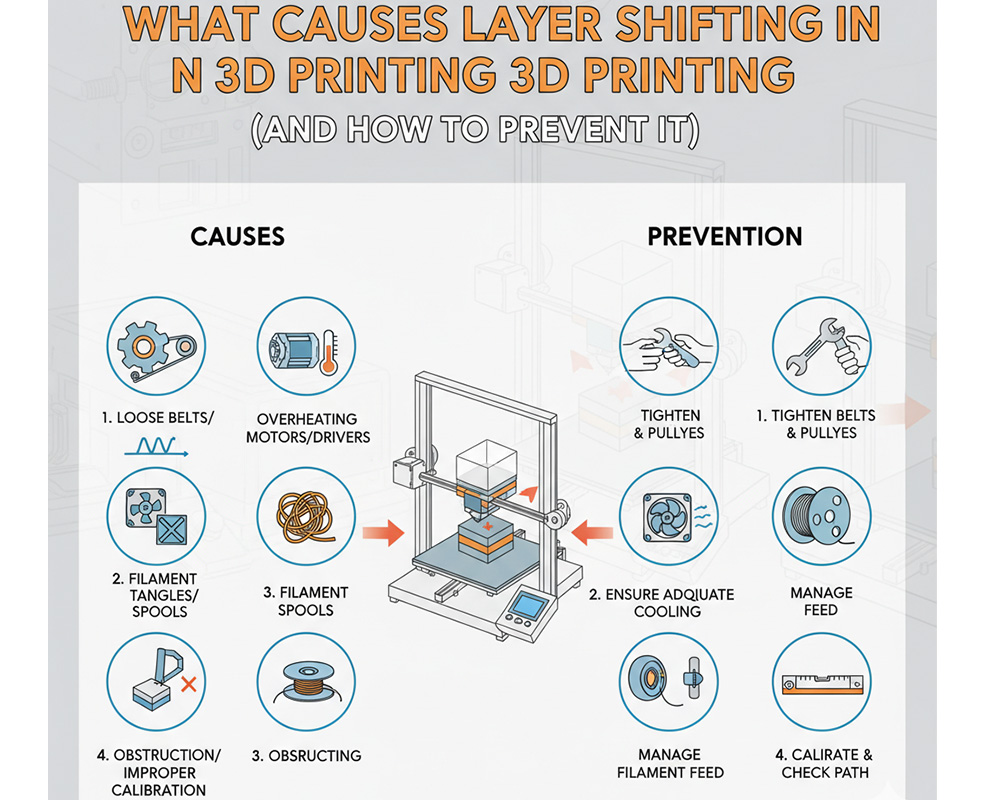

Few issues in 3D printing are as frustrating as layer shifting. You start a print expecting smooth, perfectly aligned layers — but halfway through, the print suddenly skews, producing a distorted or ruined model. This mechanical failure not only wastes material and time but also challenges your understanding of how your printer works.
Layer shifting in 3D printing occurs when successive layers are displaced in the X or Y direction, creating a misalignment in the print structure. The result looks like your model has suddenly “jumped” sideways, leaving jagged edges or a complete offset.
Understanding the root causes of layer shifting is essential for achieving consistent print quality and prolonging your printer’s life. In this article, we’ll dive deep into what causes layer shifting, how to diagnose it accurately, and — most importantly — how to prevent it.
1. Understanding Layer Shifting in 3D Printing
1.1 What Is Layer Shifting?
Layer shifting happens when the print head (or the bed) moves out of sync with the intended motion path defined by your slicer. Instead of stacking each layer directly atop the previous one, the print’s geometry shifts, causing visible offsets.
This problem typically affects the X and Y axes, where belts, pulleys, or motors control lateral movement. The Z-axis (vertical movement) is less prone to shifting but can also suffer from misalignment if threaded rods or lead screws bind.
1.2 What Does Layer Shifting Look Like?
Common symptoms include:
- Sudden sideways displacement after several layers.
- Misaligned prints where one part “sticks out.”
- Double or ghosted walls on the same model.
- Repeated pattern shifts at consistent heights.
These shifts can occur randomly or consistently, depending on whether the cause is mechanical, electrical, or software-related.
2. The Mechanical Causes of Layer Shifting
Mechanical issues are the most common culprits behind layer misalignment. A 3D printer relies on a precisely tuned motion system, and even small mechanical flaws can introduce significant errors.
2.1 Loose or Slipping Belts
The belts on the X and Y axes are responsible for moving the print head or the bed with precision. When they’re loose:
- The belt may skip teeth on the pulley.
- Acceleration or rapid direction changes cause the head to lag behind commands.
- The printer fails to maintain consistent step accuracy.
How to Fix It:
- Check that both the X and Y belts are tight enough to produce a soft twang when plucked.
- Avoid over-tightening; excessive tension can wear bearings or pulleys.
- Inspect for frayed edges or stripped teeth and replace worn belts.
2.2 Misaligned or Loose Pulleys
Each stepper motor uses a pulley to drive the belt. If the pulley’s grub screw (set screw) is not firmly attached to the motor shaft’s flat spot, it can rotate independently, leading to layer offset.
How to Fix It:
- Manually test for pulley movement by holding the belt taut and rotating the pulley.
- Tighten all set screws using thread locker for durability.
- Check that pulleys are perfectly aligned with the belt path.
2.3 Frame Instability and Vibrations
A wobbly frame or table can create micro-shifts that accumulate over time. Vibration from nearby machines or an uneven surface can worsen this effect.
Prevention Tips:
- Place the printer on a stable, vibration-absorbing surface.
- Check that all bolts and joints are firmly secured.
- Add vibration dampers to stepper motors if necessary.
2.4 Gantry Misalignment
If the gantry (crossbeam holding the print head) isn’t square to the frame, one side may move faster or slower than the other. This asymmetry causes gradual displacement.
Solution:
- Manually level and square the gantry before each major print.
- Ensure both sides of the Z-axis rise evenly during homing.
- Lubricate linear rails or rods to prevent binding.
3. Electrical and Firmware-Related Causes
Even with perfect mechanics, electrical or software issues can lead to missed steps and positional errors.
3.1 Stepper Motor Skipping Steps
Stepper motors move the print head in discrete increments. When overloaded or underpowered, they can skip steps, causing sudden shifts.
Common Reasons:
- Excessive print speed or acceleration.
- Insufficient motor current from the stepper driver.
- Motor overheating due to inadequate cooling.
How to Fix It:
- Reduce print speed and acceleration settings in your slicer or firmware.
- Adjust the Vref (reference voltage) of the stepper driver according to manufacturer recommendations.
- Add active cooling fans for drivers and motors.
3.2 Stepper Driver Overheating
If a stepper driver overheats, it may temporarily shut down, causing skipped steps that result in layer shifting.
Solution:
- Ensure proper airflow around the control board.
- Use heatsinks or cooling fans for stepper drivers.
- Check for faulty wiring or loose connectors.
3.3 Electrical Noise and Loose Connections
Loose or oxidized connections in stepper cables or mainboard terminals can cause erratic motion or signal loss.
Fix and Prevention:
- Inspect all wiring harnesses, connectors, and plugs.
- Use cable management clips to avoid tugging.
- Clean contacts with electronic-safe cleaner.
3.4 Firmware Settings and Motion Parameters
Firmware settings like jerk, acceleration, and max speed control how aggressively the printer changes direction. High values can lead to momentum-induced shifting.
Optimal Settings:
- Lower acceleration (e.g., from 1500 mm/s² to 1000 mm/s²).
- Reduce jerk to smooth out sudden direction changes.
- Recalibrate steps/mm for all axes after any hardware change.
4. Environmental and External Factors
4.1 Printer Vibration and Movement
Printers placed on lightweight or unstable surfaces can vibrate during high-speed movement, gradually leading to layer offset.
Solution:
- Use a heavy, rigid table.
- Add anti-vibration pads or isolation mats.
- Avoid placing the printer near heavy machinery or moving fans.
4.2 Sudden Impacts or Collisions
If the nozzle collides with a lifted print area or poorly adhered model, it may knock the print head off track.
Prevention Tips:
- Maintain a clean and level print bed.
- Use bed adhesion aids like glue stick, PEI, or textured sheets.
- Inspect G-code previews for potential travel collisions.
4.3 Thermal Expansion and Shrinkage
Certain filaments (like ABS) expand and contract as they heat and cool, occasionally lifting edges and causing head impact.
Mitigation:
- Use an enclosure to maintain stable ambient temperature.
- Apply adequate bed adhesion to prevent warping.
- Enable gradual cooling for tall prints.
5. Software and Slicer-Related Causes
5.1 Incorrect Slicer Configuration
Your slicer converts 3D models into machine instructions (G-code). Incorrect settings can push your printer beyond safe mechanical limits.
Check These Key Settings:
- Acceleration and jerk parameters.
- Travel speed (keep below 150 mm/s for standard Cartesian printers).
- Retraction distances that avoid excessive back-and-forth motion.
- Z-hop height to prevent nozzle collision.
5.2 Corrupted or Incomplete G-code Files
Layer shifts can occur if the G-code file itself is corrupted, truncated, or improperly transferred to the printer.
Prevention:
- Always re-slice the model if you suspect corruption.
- Use quality SD cards or direct USB connections.
- Avoid power interruptions during data transfer.
5.3 Firmware or Driver Mismatch
Outdated or incompatible firmware can misinterpret G-code commands, leading to motion errors.
Fix:
- Update firmware to the latest stable release for your printer model.
- Reflash stepper driver firmware (if applicable).
- Backup configuration files before making changes.
6. How to Diagnose Layer Shifting
Systematically diagnosing the cause prevents guesswork. Here’s a step-by-step process:
6.1 Observe the Shift Pattern
- Single sudden shift: likely mechanical (pulley or belt issue).
- Repeated or rhythmic shift: check stepper motors or acceleration.
- Random misalignment: investigate electrical or connection issues.
6.2 Check Each Axis
Move the print head manually along X, Y, and Z axes:
- If resistance or grinding is felt, inspect rods and bearings.
- Listen for unusual noises (indicative of motor binding).
- Confirm that motion is smooth and symmetrical.
6.3 Test with a Calibration Cube
Print a small cube to check for consistent layer alignment.
- Use slow speeds to isolate mechanical vibration.
- Gradually increase speed to test for missed steps.
6.4 Review Printer Logs (If Available)
Advanced printers or firmware can log skipped steps or driver faults. Analyze this data to pinpoint which axis caused the error.
7. How to Prevent Layer Shifting
Once you’ve identified the cause, prevention becomes a matter of routine calibration, mechanical care, and conservative settings.
7.1 Maintain Proper Belt Tension
- Recheck tension monthly.
- Replace belts showing cracks or deformation.
- Keep pulleys clean and aligned.
7.2 Regularly Lubricate and Clean
Dust buildup can increase friction. Use PTFE or lithium grease on smooth rods and light machine oil for lead screws.

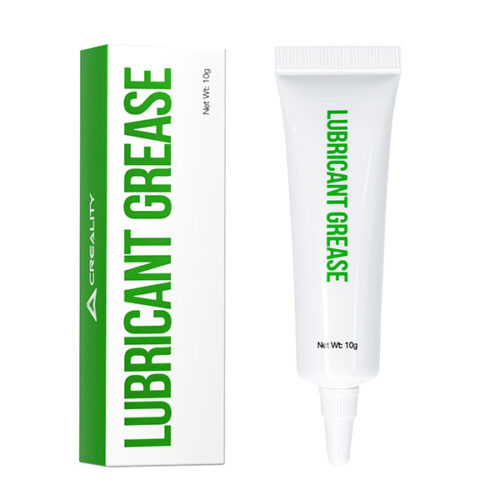

3D Printer Gear Grease
7.3 Optimize Print Speeds
Reducing speed and acceleration not only improves layer adhesion but also stabilizes movement.
- Recommended: 40–60 mm/s for detailed prints.
- Avoid aggressive direction changes in slicer settings.
7.4 Ensure Thermal Management
Keep drivers and motors cool with fans or heatsinks. Overheating often manifests as intermittent layer shifts.
7.5 Use Firmware Safety Features
Enable options such as:
- Crash detection (on Prusa and similar printers).
- Power loss recovery (to avoid restarts misaligning layers).
- Sensorless homing (helps re-home axes safely after interruptions).
7.6 Secure Printer Position
Always ensure the printer sits on a flat, stable surface, away from constant vibration or drafts that can affect print cooling.
8. Long-Term Maintenance Tips
Regular inspection prevents gradual mechanical wear that often leads to misalignment.
Maintenance Task | Frequency | Notes |
| Check belt tension | Every 2 weeks | Retighten if slack develops |
| Clean rods/rails | Monthly | Use lint-free cloth |
| Lubricate linear motion | Monthly | Avoid over-lubrication |
| Inspect pulleys & screws | Monthly | Tighten with thread locker |
| Update firmware | Quarterly | Always back up settings |
| Electrical connection check | Quarterly | Look for loose or corroded contacts |
Consistency is key. A well-maintained printer rarely experiences layer shifting.
9. Troubleshooting Example Scenarios
Scenario 1: Sudden Layer Shift Mid-Print
Likely cause: Stepper motor skipped steps due to collision.
Solution: Check bed leveling, reduce Z-hop, and slow travel speed.
Scenario 2: Repeated Shift Every Few Layers
Likely cause: Loose pulley or consistent belt slip.
Solution: Tighten all set screws and recalibrate tension.
Scenario 3: Shift Only on Tall Prints
Likely cause: Frame instability or vibration resonance.
Solution: Reinforce printer frame and lower print speed at high Z heights.
Scenario 4: Random Shifts Across Model
Likely cause: Electrical interference or overheating driver.
Solution: Add cooling, inspect wiring, and reduce driver current.
10. Advanced Preventive Techniques
10.1 Install TMC Silent Drivers
Upgrading to Trinamic (TMC) stepper drivers can improve motion smoothness and detect skipped steps.10.2 Use Linear Rails
Replacing roller systems with linear rails enhances rigidity and reduces backlash.
10.3 Motion Compensation Firmware
Some modern firmware supports input shaping or motion compensation that reduces resonance-induced shifts.
10.4 Enclosures for Environmental Stability
An enclosure maintains consistent temperature and reduces external interference, especially important for ABS or ASA filaments.
Conclusion: Precision Starts with Stability
Layer shifting is a mechanical symptom — not the disease. It reveals underlying flaws in motion control, mechanical stability, or thermal management.
By combining regular maintenance, conservative firmware tuning, and environmental awareness, you can eliminate layer shifting and produce consistently accurate prints.
Remember: the goal isn’t just to stop one failed print. It’s to understand your machine so well that failure becomes rare, not random.
FAQs: Common Questions About Layer Shifting
1. Why do 3D prints suddenly shift layers?
Layer shifts usually happen when the stepper motors lose position due to belt slip, pulley misalignment, or skipped steps from overloading.
2. Can slicer settings cause layer shifting?
Yes. High acceleration, jerk, or travel speed settings can cause excessive momentum that your printer can’t physically handle, resulting in shifts.
3. How do I fix layer shifting on my Ender 3 (or similar printer)?
Tighten belts, check pulley screws, reduce print speed, and ensure the printer sits on a stable surface. Recheck stepper driver cooling if the issue persists.
4. Why does layer shifting happen only on tall prints?
Tall prints amplify small vibrations and mechanical inaccuracies over time. Frame wobble or resonance often causes accumulated displacement.
5. Can temperature fluctuations cause layer shifting?
Yes, thermal expansion or warping can lift parts of the print, causing collisions that lead to misalignment.
6. How can I prevent layer shifting long-term?
Perform regular maintenance — check belts, clean rails, update firmware, and recalibrate motion parameters every few months.
Final Thoughts
Layer shifting is preventable. With careful calibration, stable mechanics, and proper maintenance, even budget printers can achieve industrial-level consistency. Treat each shift not as a setback but as a clue — a signal guiding you toward mastery of your machine.
